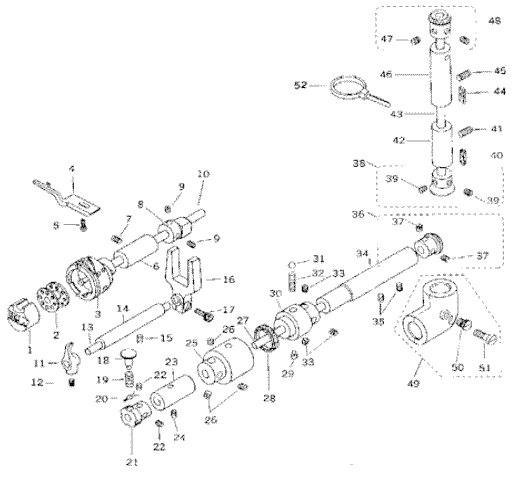

1 Bobbin Case
18045
2 Bobbin
18034
3 Hook Complete
18033
4 Hook Supporting Plate 18035
5 Set Screw 6025
6 Hook Shaft Bushing (Front) 18090
7 Set Screw 8009
8 Hook Shaft Collar 18044
9 Set Screw 8009
10 Hook Driving Shaft 18089
11 Thread Releasing Finger 18039
12 Set Screw 18040
13 Shaft, Thread Releasing 18041
14 Bushing, Thread Releasing Shaft 18042
15 Set screw 1786
16 Fork, Thread Releasing Shaft 18043
17 Screw, Pinch 30066
18 Button 18053
19 Spring For Button 18054
20 Clip 10674
21 Hook Shaft Lock Ratchet 18052
22 Set Screw 17022
23 Hook Shaft Bushing (Rear) 18038
24 Set Screw 8009
25 Safety Clutch (Left) 18047
25 Safety Clutch (Left) 18047
26 Set screw (B) 17019
27 Lower Shaft 18056
28 Oil Wick 18046
29 Set Screw 18051
30 Safety Clutch (Right) 18048
31 Steel Ball 18049
32 Spring 18050
33 Set screw (B) 17019
34 Lower Shaft Bushing 18057
35 Set Screw 8009
36 Lower Shaft Gear Complete with Screws 17028C
37 Set screw 10828
38 Shaft (Upright) Gear (Lower) Complete with Screws 17023C
39 Set Screw 17022
39 Set Screw 17022
40 Oil Felt 17026
41 Set Screw 10579
42 Arm Shaft (Upright) Bushing (Lower) 17025
43 Arm Shaft (Upright) 17020
44 Oil Felt 17026
45 Set Screw 10579
46 Arm Shaft (Upright) Bushing (Upper) 17024
47 Set Screw 17022
48 Arm Shaft (Upright) Gear Complete 17021C
49 Gear Cover Complete (Lower) 18058C
50 Gear Cover (Lower) Sealing Screw 18060
51 Pinch Screw 18059
52 Tie Band 30750
