Ref #  Description  Part #

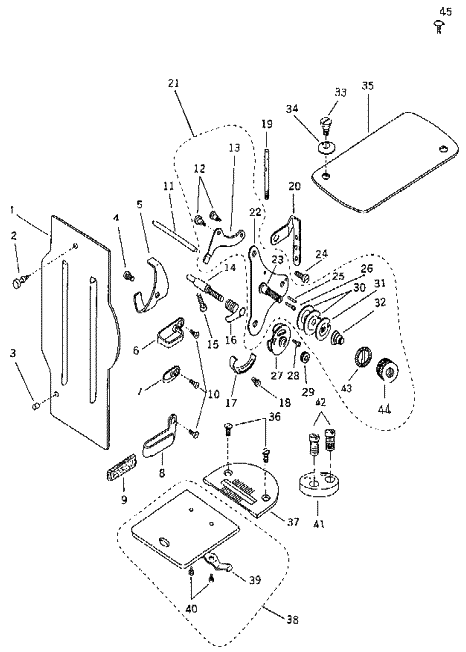

206RB Thread Tension Assembly... Page 1

1 Face Plate 10698
2 Face plate set screw  8093
3 Face plate stopper pin   10700
4 Set Screw   8100
5 Oil Guard  10551
6 Thread Guide (upper) 10682
7 Thread guide (middle) 10683
8 Thread guide (lower)  10759-A
9 Felt for thread guide  10760
10 Thread guide screw 19510
11 Tension release lever rod 10720
12 Tension release lever screw 19422
13 Tension release lever 10678
14 Tension control stud  19512
15 Tension Stud set screw 19518
16 Check Spring 10689
17 Thread controller spring 10690
18 Set Screw 8100
19 Spool pin 10709
20 Thread retainer 15062
21 Tension Bracket Complete 19421C-A
22 Tension bracket  19421
23 Tension stud 19511
24 Set screw 18085
25 Tension bracket pin 10791
26 Tension release plunger 10793
27 Thread controller disc 10694
28 Thread controller disc screw B118319
29 Tension thumb nut 19534
30 Thread disc 19531
31 Tension release washer 19532
32 Tension release spring 19533
33 Arm Cap Screw 12384
34 Arm Cap Screw Washer 10703
35 Arm Cap  18004
36 Needle plate set screw  6031-01 (691)
37 Needle Plate  18030
38 Bed Slide Plate Complete 18032
39 Bed slide spring  6034
40 Set Screw Consew  6035
41 Edge guide plate 18495
42 Screw for edge guide plate 37254
43 Tension thumb nut stopper  28206
44 Tension thumb nut 19513
45 Screw  30046
